In the heart of China’s Shandong Province, researchers are pioneering a technology that could revolutionize the way we monitor and maintain critical mining equipment. Qiang Zhang, a professor at the College of Mechanical and Electronic Engineering at Shandong University of Science and Technology, has led a groundbreaking study that merges the worlds of digital twins and machine learning to predict the structural responses of scraper conveyors—a vital component in coal mining operations.

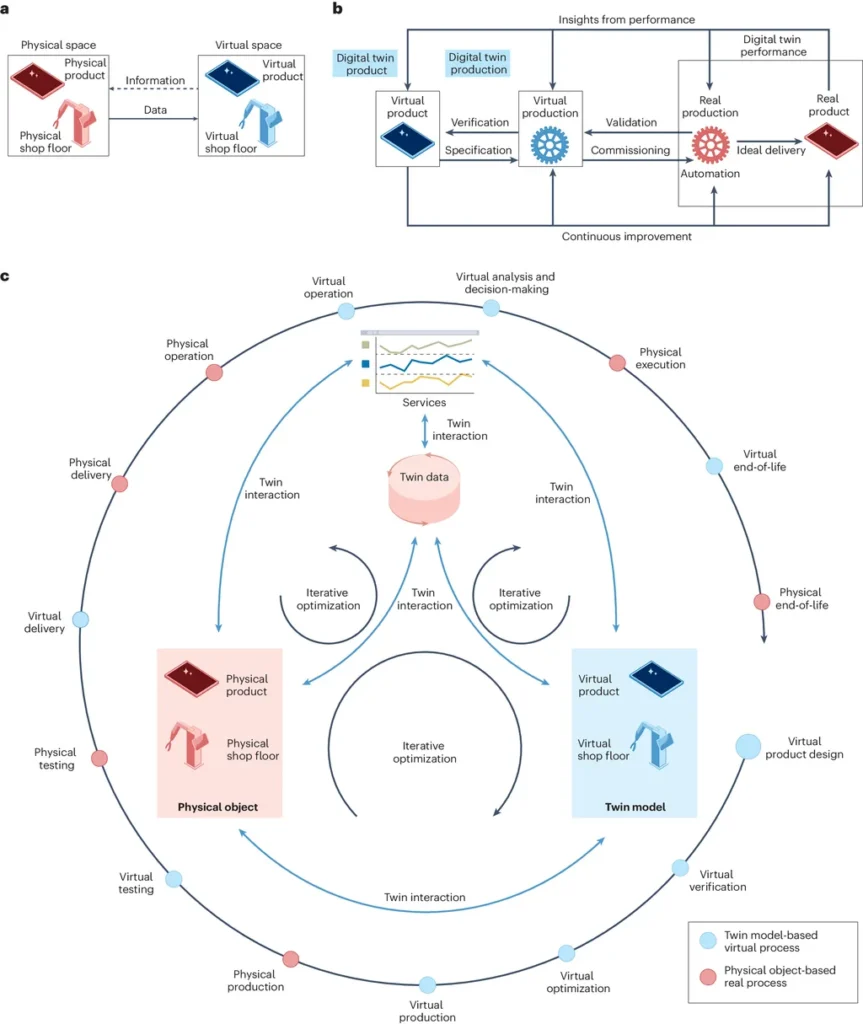

Scraper conveyors are the unsung heroes of the mining industry, transporting coal from the cutting face to the main conveyor belt. However, their harsh operating conditions often lead to wear and tear, making real-time monitoring crucial for safety and efficiency. Enter digital twin technology, a virtual replica of a physical system that can be used for simulation, monitoring, and prediction.
Zhang and his team have developed a novel approach that uses machine learning to predict the structural responses of scraper conveyor troughs under different load conditions. “We’ve essentially taught a deep neural network to understand the behavior of the scraper conveyor trough,” Zhang explains. “By clustering nodes with similar responses and predicting their behavior, we can reconstruct the global mechanical response state of the trough in real time.”
The team’s method involves using finite element analysis to obtain node responses under various load conditions. They then employ a hierarchical clustering method to group nodes with similar numerical values. A deep neural network is then used to predict the clustering results and cluster center values. These predicted values are used to replace the values of all nodes within the cluster domain, allowing for the reconstruction of the global mechanical response state.
The results are impressive. The deep neural network can predict all nodes and complete the 3D node cloud reconstruction in just 0.32 seconds, with maximum prediction errors for stress and displacement of 0.97 MPa and 1.98×10−3 mm, respectively. The team has also developed a visualization interface based on Unity, allowing for real-time monitoring and prediction of the scraper conveyor’s mechanical responses.
The implications for the energy sector are significant. “This technology could greatly enhance the condition monitoring of scraper conveyors, reducing downtime and improving safety,” Zhang says. By continuously predicting the stress distribution of the trough based on sensor data, operators can take proactive measures to prevent failures and extend the lifespan of their equipment.
The research, published in the Chinese journal Meitan xuebao (which translates to “Coal Science and Technology”), marks a significant step forward in the application of digital twin technology in the mining industry. As the world continues to grapple with the challenges of energy production and safety, innovations like Zhang’s offer a glimpse into a future where technology and industry converge to create safer, more efficient operations.
The potential for this technology extends beyond scraper conveyors. As Zhang notes, “The method we’ve developed could be applied to other types of mining equipment, and even to other industries where real-time monitoring and prediction are crucial.” With further development and refinement, this technology could become a cornerstone of Industry 4.0, driving the next wave of technological revolution in the energy sector and beyond.
